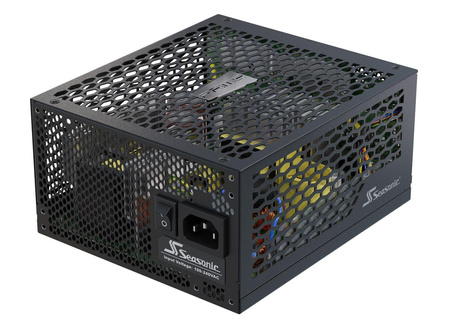

CASE PSU ATX 700W/PRIME-TX-700 SEASONIC

CASE PSU ATX 700W/PRIME-TX-700 SEASONIC

292,09 €

inkl. MwSt / 1szt.
Niedrigster Preis in 30 Tagen vor Rabatt: / szt.
Normaler Preis: / szt.
Cena sugerowana:292,09 €
Sie können für Pkt.
aus
Sie können auch kaufen mit:
Kontaktieren Sie den Shopservice, um die für die Vorbereitung dieser Ware zum Versand benötigte Zeit einzuschätzen.
Versand
14 Tage für einfache Rückgabe
Dieses Produkt ist nicht in einem stationären Geschäft erhältlich
Sicher einkaufen
Nach dem Kauf erhalten Sie Pkt.

PRIME Fanless TX utilizes the fanless technology, which eliminates the fan noise completely, ensuring truly quiet operation. The unit not only is rated to be 80PLUS Titanium efficient, but it also has the highest power output on the fanless power supply market at the moment. The power supply is ideal any situations that demand silence from the equipment. The high quality components inside and the innovative circuit design result in clean and stable power output. The fully modular cables allow for better cable management in the computer case.

80 PLUS® Titanium
The PRIME Titanium Series achieves the highest level of 80 PLUS® Titanium certification on the market with its 94 % efficiency at 50 % system load.

Micro Tolerance Load Regulation
Seasonic’s latest design keeps the output voltage within a very tight range, achieving under 0.5 % load regulation. This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.

Seasonic Fanless Design
Cooling fans inside the power supply are replaced by passive cooling based on heat dissipation. Silent operation does not only provide a more pleasant working environment but it also results in less power consumption and lower utility bills.

  • ATX 12 V
  • Full Modular
  • 80 PLUS Titanium Certified
  • Dimensions: 170 mm (L) x 150 mm (W) x 86 mm (H)

Symbol
PRIME-TX-700
Herstellercode
4711173876175
Kategoria ELKO
Zasilacze ATX
Kod kategorii ELKO
PSU
Kod producenta ELKO
KT
Kod CN
85044095
Ilość w opakowaniu
1
Dostępni przewoźnicy
DPD, InPost, Omniva
700
W
100
- 240 V
Wydajność
94 %
94%
Certyfikat
80 PLUS 80 PLUS Titanium
Cechy 5
PC
Cechy 6
ATX
Rodzaj
opakowania Pudełko
PRIME
FANLESS TX
Category Code
PSU
CnCode
85044095
Unit Box Height
0.19
Unit Box Length
0.345
Unit Box Width
0.115
Moc
Częstotliwość wejściowa AC
50 - 60 Hz
Funkcje ochrony zasilania
Over current, Over power, Over voltage, Short circuit, Under voltage
Łączna moc (+12 V)
696 W
Łączna moc (+3.3 V)
100 W
Łączna moc (+5 V)
100 W
Łączna moc (+5 Vsb)
15 W
Łączna moc (-12V)
3.6 W
Maksymalny prąd wyjściowy (+12 V)
58 A
Maksymalny prąd wyjściowy (+3.3V)
20 A
Maksymalny prąd wyjściowy (+5 V)
20 A
Maksymalny prąd wyjściowy (+5 Vsb)
3 A
Maksymalny prąd wyjściowy (-12 V)
0.3 A
Moc w sumie
700 W
Napięcie wejściowe AC
100 - 240 V
Prąd wejściowy
4.5 - 9.5 A
Porty i interfejsy
Długość kabla płyty głównej
61 cm
Długość kabla zasilającego CPU
65 cm
Długość kabla zasilającego PCI Express
75 cm
Długość kabla zasilającego SATA
450,800,810 mm
Ilość złączy zasilających SATA
3
Motherboard power connector
20+4 pin ATX
Peryferyjna (Molex) Długość kabla zasilającego
300,470,690 mm
Typ okablowania
Fully-Modular
Złącza zasilające CPU (8-pin)
2
Złącza zasilające PCI Express (6+2 pin)
4
Złącza zasilania Peripheral (Molex) (4-pin)
3
Wydajność
Certyfikat 80 PLUS
80 PLUS Titanium
MTBF (Średni okres międzyawaryjny)
150000 h
Obsługiwany typ płyty głównej
ATX
Przeznaczenie
PC
Rodzaj zasilacza (PSU)
ATX
Konstrukcja
Kolor produktu
Black
Rodzaj chłodzenia
Passive
Wbudowany wyłącznik
Yes
Warunki pracy
Zakres temperatur (eksploatacja)
0 - 45 °C
Certyfikaty
Certyfikaty
cTUVus, TUV, CB, CCC, BSMI, EAC, CE, WEEE, ErP Lot 6, REACH
Certyfikaty zgodności
RoHS
Waga i rozmiary
Głębokość produktu
170 mm
Szerokość produktu
150 mm
Wysokość produktu
86 mm
Dane opakowania
Rodzaj opakowania
Box
Szczegóły techniczne
Certyfikat środowiskowy (zrównoważonego rozwoju)
ENERGY STAR
Dane logistyczne
Kod zharmonizowanego systemu (HS)
84733020
Nazwa modelu
PRIME FANLESS TX
Objętność brutto
0.007538 cubm
Jednostkowa waga brutto
3.44 kg
