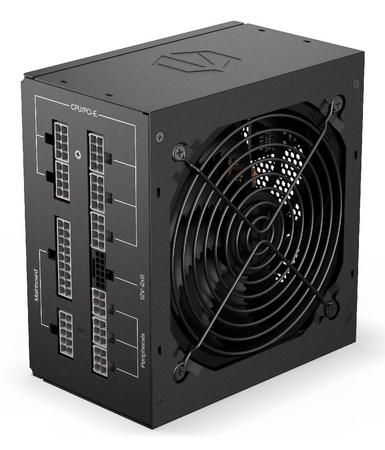

Supremo FM6 850 W is a fully modular modern ATX 3.1-compliant power supply unit, providing stable operation and supporting PCIe 5.1 GPUs. 80 PLUS® Gold certificate confirms its high efficiency, while a Fluctus fan guarantees quiet work. Thanks to the Japanese capacitors and a 10-year warranty, it’s a reliable solution for avid gamers and professionals alike.

Supremo FM6 850 W
Supremo FM6 850 W is a modular ATX 3.1 PSU for demanding users that supports PCIe 5.1 graphics cards. It boasts high power efficiency confirmed by an 80 PLUS® Gold certificate. The power supply’s design utilizes only the Japanese capacitors that guarantee its long service life.

The quiet Fluctus 120 mm fan and optimized component placement ensure low temperatures with almost noiseless operation. Additionally, the modular cables make it easier to keep the surrounding space in order. The PSU also has a security package that protects it from overloading and power surges. Its quality is additionally confirmed by a 10-year warranty.

Ready for latest ATX 3.1 standards
Supremo FM6 850 W is a power supply unit compliant with the ATX 3.1 standard. Its major advantages include even better performance, stability, and resistance to momentary power spikes than previous ATX standards. The set includes the 12V-2x6 cable fully compatible with PCIe 5.1 cards. A traditional PCI-E 6+2 PIN splitter is also included to handle GPUs with classic power supply systems.

80 PLUS® Gold – supreme performance and reliability
The 80 PLUS® Gold certificate confirms the high efficiency of the Supremo FM6 850 W power supply unit. Thanks to its excellent quality and refined design, the unit is characterized by low-noise and low-temperature operation, resulting in its extended service life. 

Silence first
Supremo FM6 850 W has been designed with maximum user comfort in mind. Thanks to the optimized component setup streamlining the air flow and a high-performance cooling system, the PSU runs exceptionally quietly and retains low temperature even under full load.

Premium class capacitors made in Japan
All capacitors installed in the Supremo FM6 850 W power supply unit are reliable, premium-class components made in Japan. They retain their operating parameters even at high temperatures (105 °C), enabling them to perform faultlessly and stably for years to come, even under extremely demanding operating conditions. 

Marke
Symbol
EY7A012
Herstellercode
5903018667959
Kategoria ELKO
Zasilacze ATX
Kod kategorii ELKO
PSU
Kod producenta ELKO
5B
Kod CN
85044095
Ilość w opakowaniu
1
6
Dostępni przewoźnicy
DPD, InPost, Omniva
SUPREMO
FM6
ATX
3.1
850
Watts
Dostępne
instrukcje 12cm fan
80
PLUS GOLD
MTBF
100000 GODZINY
Kolor
Czarny
Category Code
PSU
CnCode
85044095
Unit Box Height
0.22
Unit Box Length
0.1
Unit Box Width
0.27
Moc
Częstotliwość wejściowa AC
50/60 Hz
Funkcje ochrony zasilania
Over current, Over power, Over voltage, Short circuit, Surge & inrush protection (SIP), Under temperature, Under voltage
Łączna moc (+12 V)
840 W
Łączna moc (+3.3 V)
66 W
Łączna moc (+5 V)
100 W
Łączna moc (+5 Vsb)
15 W
Łączna moc (-12V)
3.6 W
Maksymalny prąd wyjściowy (+12 V)
70 A
Maksymalny prąd wyjściowy (+3.3V)
20 A
Maksymalny prąd wyjściowy (+5 V)
20 A
Maksymalny prąd wyjściowy (+5 Vsb)
3 A
Maksymalny prąd wyjściowy (-12 V)
0.3 A
Moc w sumie
850 W
Napięcie wejściowe AC
100 - 240 V
Prąd wejściowy
13 - 6.5 A
Typ PFC (Power Factor Correction) – korekcji współczynnika mocy
Active
Porty i interfejsy
Długość kabla zasilającego SATA
560 mm
Ilość złączy zasilających SATA
8
Motherboard power connector
24-pin ATX
Typ okablowania
Fully-Modular
Złącza zasilające PCI Express (6+2 pin)
3
Złącza zasilania PCI Express (12+4 pin)
1
Złącza zasilania Peripheral (Molex) (4-pin)
1
Złącze zasilania EPS (4+4 pin)
Yes
Wydajność
Certyfikat 80 PLUS
80 PLUS Gold
MTBF (Średni okres międzyawaryjny)
100000 h
Przeznaczenie
PC
Rodzaj zasilacza (PSU)
ATX
Technologia łożysk
FDB
Wersja ATX
3.1
Konstrukcja
Diody LED
No
Kolor produktu
Black
Liczba wentylatorów
1 fan(s)
Oświetlenie
No
Prędkość wentylatora
1260 - 1540 RPM
Rodzaj chłodzenia
Active
Średnica czaszy wentylatora
12 cm
Umiejscowienie wentylatora
Top
Wbudowany wyłącznik
Yes
Włącznik/wyłącznik wentylatora
No
Certyfikaty
Certyfikaty zgodności
CB, CCC, CE, Federal Communications Commission (FCC), RoHS, UKCA
Zawartość opakowania
Przewody
AC
Waga i rozmiary
Głębokość produktu
150 mm
Szerokość produktu
140 mm
Waga produktu
1.46 kg
Wysokość produktu
87 mm
Dane opakowania
Głębokość opakowania
270 mm
Podręcznik użytkownika
Yes
Rodzaj opakowania
Box
Szerokość opakowania
220 mm
Waga kartonu zbiorczego
17000 kg
Waga wraz z opakowaniem
2.74 kg
Wymiary po zapakowaniu (Szer. x Głęb. X Wys.
600 x 235 x 290 mm
Wysokość opakowania
95 mm
Szczegóły techniczne
Nie zawiera
Cadmium, Lead, Mercury
Dane logistyczne
Kraj pochodzenia
China
Okres gwarancji
10 year(s)
Nazwa modelu
SUPREMO FM6
PCI-Express 3.0 16x
0
Objętność brutto
0.006815 cubm
Jednostkowa waga brutto
2.85 kg
